DS-08 High-Quality SMD DIP Switch for Circuit Control

DS-08 High-Quality SMD DIP Switch

Durability is a hallmark of the SMD DIP Switch, boasting a mechanical lifespan of over 2000 cycles. That's right – this switch will accompany you through countless operations, providing reliable functionality and consistently meeting your needs. Say goodbye to frequent replacements and hello to long-lasting performance.

Delivering an exquisite blend of efficiency and ease of use, the SMD DIP Switch features a tactile feedback mechanism with a maximum actuation force of 1000g. This technology guarantees a satisfying click with every flick, enabling effortless toggling between settings. Say goodbye to accidental changes and hello to precise control over your device settings.

Main features:

8-position settings to adapt to a variety of configuration needs

This switch provides 8 positions, which is very suitable for switch configuration, setting voltage, control mode, etc. of the circuit board. You can choose the appropriate position according to your needs to quickly adjust the circuit settings and easily complete the debugging work.

Space-saving, compact design

The SMD (surface mount)design makes this switch very suitable for small spaces, especially when you need to install it in small devices or electronic products. It takes up less space, making your circuit board design more flexible and compact.

High reliability and durability

Made of high-quality materials and processes, it ensures clear and stable operation every time. Even under long-term use, it can still maintain good performance and reduce failure problems caused by poor contact.

Installation steps:
Choose the right position: According to the circuit board design, choose the appropriate welding position.

Solder to the circuit board: Solder the switch to the PCB surface through SMD surface mounting technology to ensure a secure fixation.

Adjust settings: After soldering, you can configure the circuit by switching the switch position to quickly adjust the device function.

1.Pole

2.Rating

3.Electrical

4.Soldering Information

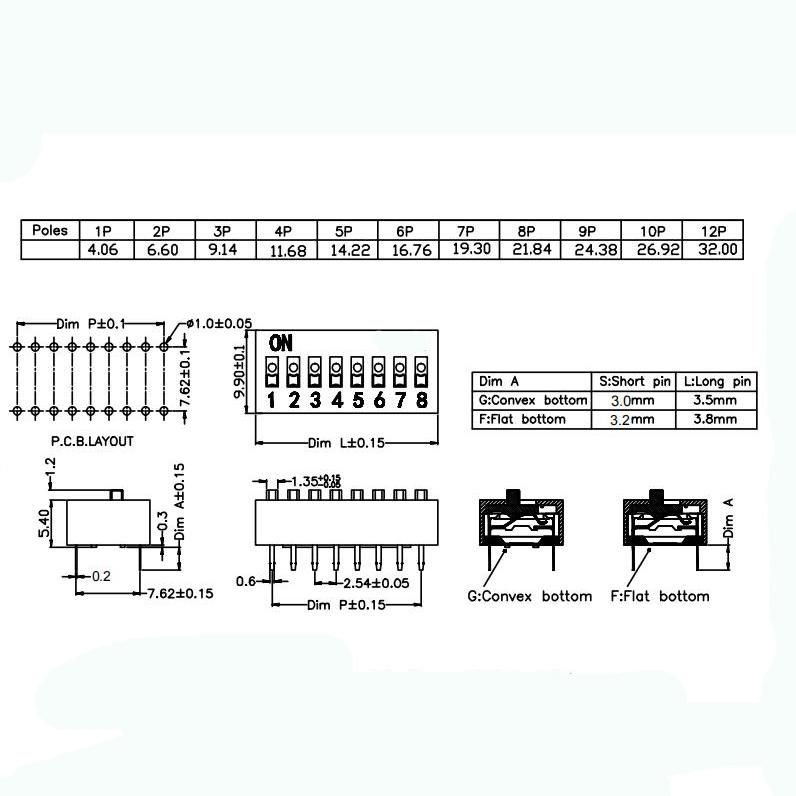

Dimensions

Advantages

☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations

Application

1.Motion controller    2.Three-phase power meter   3.Microcomputer protection device  4.Electric equipment

5.Automation equipment  6.Security equipment  7.Internet of things equipment

Package

We choose the high quality and safe packaging material to make sure  your order  won't  be damaged during delivery.

These trade terms are acceptable:EXW,FOB,CFR,CIF.
