High Quality DP-NP SMD DIP Switch for Electronics

High Quality DP-NP SMD DIP Switch

Engineered to withstand extreme conditions, the SMD DIP Switch is built to endure temperatures ranging from a bone-chilling -40℃ to a scorching hot +85℃. Whether it's harsh winters or blistering summers, this switch is designed to function flawlessly, ensuring uninterrupted performance in any environment.

Main features:

Easy to install: This SMD DIP switch can be installed in two ways: surface mount (SMD) and dual in-line plug (DIP). It works great whether you want to save space or need a really secure way to attach it.

Small and Space-Saving: Its small size helps save room on the circuit board, which is useful when space is tight. It fits easily on both small devices and complex boards.

Adjustable:This switch is often used to set up how devices work, like picking a voltage or controlling circuit changes. This lets you set up your device to do different things.

How to Install:

Pick your install style: Decide if you want SMD or DIP based on your board.
Put the switch on the board: For SMD, solder it right onto the PCB. For DIP, stick it in the board's holes and solder.

Wire it up and test: After you install it, you can use the switch to mess with the circuit and get everything working right.

Product Specifications:

1.Pole

2.Rating

3.Electrical

4.Soldering Information

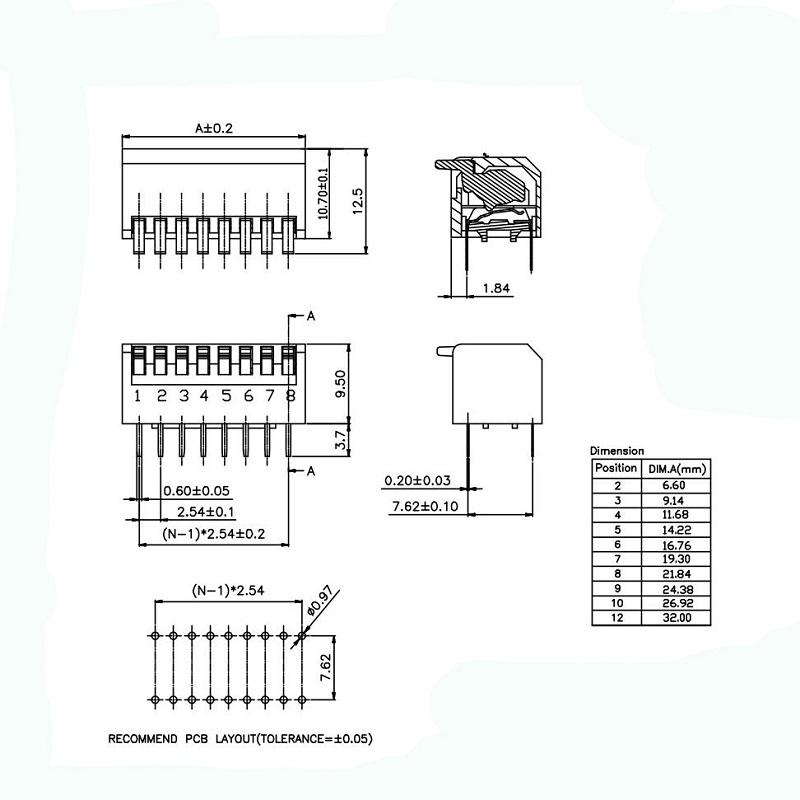

Dimensions

Advantages

☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations

Application

1.Motion controller    2.Three-phase power meter   3.Microcomputer protection device  4.Electric equipment

5.Automation equipment  6.Security equipment  7.Internet of things equipment

Package

We choose the high quality and safe packaging material to make sure  your order  won't  be damaged during delivery.

These trade terms are acceptable:EXW,FOB,CFR,CIF.
