Brand：HOMNECKS
5.08 Pitch Pluggable Terminal Block
Numble Of Pole: we can make from 2P to 24P
Item No :
H2EDGKRM-5.08Payment :
T/TProduct Origin :
ChinaColor :
green ,we can also make other color if meet moq5.08mm PCB terminal block
Friendly 5.08 pitch screw-lock terminal connector, designed exclusively for streamlined wire connections in any electronic setup.Crafted to perfection, this cutting-edge connector takes simplicity to new heights. Its ingenious design allows for seamless and effortless wiring, making it a top choice for professionals and enthusiasts alike.
Why pick the 5.08 PCB Connector Terminal Block?
Exact Fit: The 5.08mm spacing means it'll fit most boards and devices.
Strong Build: Good materials and careful work mean it'll last.
Quick Setup: Simple design cuts down on install time and mistakes.
Safe and Sound: Screws keep everything secure.
Type and Pole
Type: Pcb Pluggable Screw Terminal Block
Pole:
| 2 pin terminal block | 3 pin terminal block | 4 pin terminal block | 5 pin terminal block | 6 pin terminal block | 7 pin terminal block |
| 8 pin terminal block | 9 pin terminal block | 10 pin terminal block | 11 pin terminal block | 12 pin terminal block | 13 pin terminal block |
| 14 pin terminal block | 15 pin terminal block | 16 pin terminal block | 17 pin terminal block | 18 pin terminal block | 19 pin terminal block |
| 20 pin terminal block | 21 pin terminal block | 22 pin terminal block | 23 pin terminal block | 24 pin terminal block |
Material Of Pluggable Terminal Block
| Housing | PA66, UL94V-0 |
| Contact | Phosphor bronze |
| Clamp | Brass, Ni plated |
| Screws | M2.5/M3 steel Zinc plated（based on different price） |
| Cage | Ni plated |
Electrical Of Pluggable Terminal Block
| Rated Voltage |
UL IEC 300V 320V |
| Rated Current | 15A 20A |
| Contact resistance | 20mΩ |
| Insulation resistance | 500MΩ/DC500V |
| Wire range | 28-12AWG |
| Withstanding voltage | AC 2500V/1 Min |
Mechanical Of Pluggable Terminal Block
| Temp. Range | -40℃~ +105℃ |
| MAX Soldering | +250, for 5 Sec. |
| Torque | 0.5Nm(5.1kgf.cm) |
| Strip length | 6-7mm Insulation resistance |

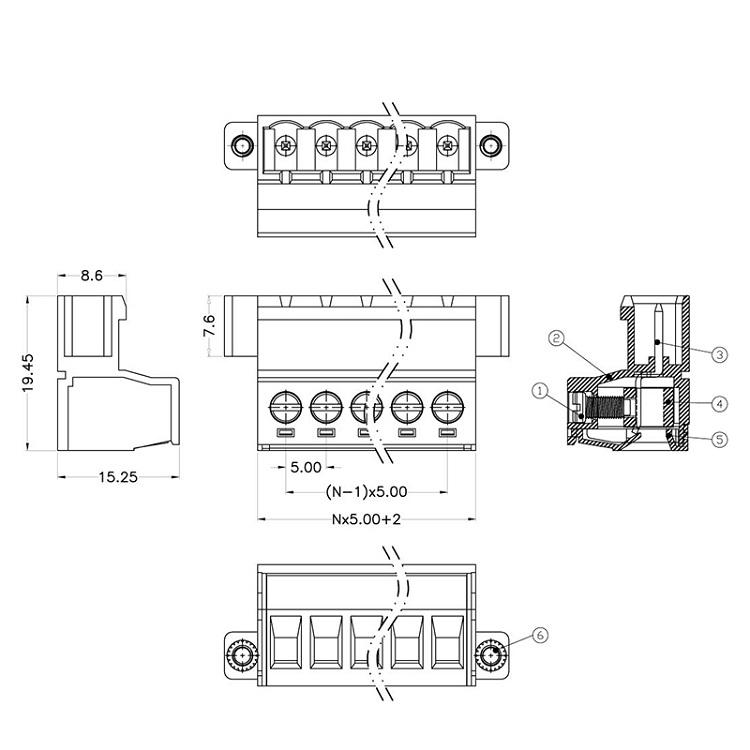

Dimensions
Advantages
☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations
Application Of Pluggable Terminal Block
1.Motion controller 2.Three-phase power meter 3.Microcomputer protection device 4.Electric equipment
5.Automation equipment 6.Security equipment 7.Internet of things equipment
Package Of Pluggable Terminal Block
We choose the high quality and safe packaging material to make sure your order won't be damaged during delivery.
These trade terms are acceptable:EXW,FOB,CFR,CIF.
