Brand：HOMNECKS
Rail Plug-in type terminal block H2EUDBM-5.08
Item No :
Rail Plug-in type terminal block H2EUDBM-5.08Payment :
T/TProduct Origin :
ChinaColor :
green ,we can also make other color if meet moq5.08mm Rail Terminal Block
This 5.08 mm pitch Rail Plug-in type terminal block is meticulously engineered to withstand the demands of even the most intricate electronic systems. Its impeccable conductivity ensures optimal electrical conductivity, enabling seamless transmission of power and signal.
Why choose H2EUDBM-5.08 Rail Plug-in Type Terminal Block?
Quick installation, save time: The plug-in design makes installation faster, helping you improve work efficiency and reduce equipment downtime.
Suitable for rail installation: Suitable for all applications using rail installation, providing a stable installation solution.
Standardized size, wide compatibility: The standard spacing of 5.08mm ensures that it is compatible with a variety of electrical equipment and adapts to different needs.
High quality, durable: The selection of high-quality materials ensures that the terminal block works stably for a long time and maintains good connection performance even in harsh environments.
Wide application: Applicable to multiple fields such as industrial automation, electrical control, and power distribution systems to meet various electrical connection needs.
Type and Pole
Type: Pcb Pluggable Screw Terminal Block
Pole:
| 2 pin terminal block | 3 pin terminal block | 4 pin terminal block | 5 pin terminal block | 6 pin terminal block | 7 pin terminal block |
| 8 pin terminal block | 9 pin terminal block | 10 pin terminal block | 11 pin terminal block | 12 pin terminal block | 13 pin terminal block |
| 14 pin terminal block | 15 pin terminal block | 16 pin terminal block | 17 pin terminal block | 18 pin terminal block | 19 pin terminal block |
| 20 pin terminal block | 21 pin terminal block | 22 pin terminal block | 23 pin terminal block | 24 pin terminal block |
Material Of Pluggable Terminal Block
| Housing | PA66, UL94V-0 |
| Contact | Phosphor bronze |
| Screws | M2.5 steel Zinc plated（based on different price） |
Electrical Of Pluggable Terminal Block
| Rated Voltage |
UL IEC 300V 320V |
| Rated Current | 15A 20A |
| Contact resistance | 20mΩ |
| Insulation resistance | 500MΩ/DC500V |
| Wire range | 24-12AWG |
| Withstanding voltage | AC 2000V/1 Min |
Mechanical Of Pluggable Terminal Block
| Temp. Range | -40℃~ +105℃ |
| MAX Soldering | +250, for 5 Sec. |
| Torque | 0.5Nm(5.1kgf.cm) |
| Strip length | 7-8mm Insulation resistance |

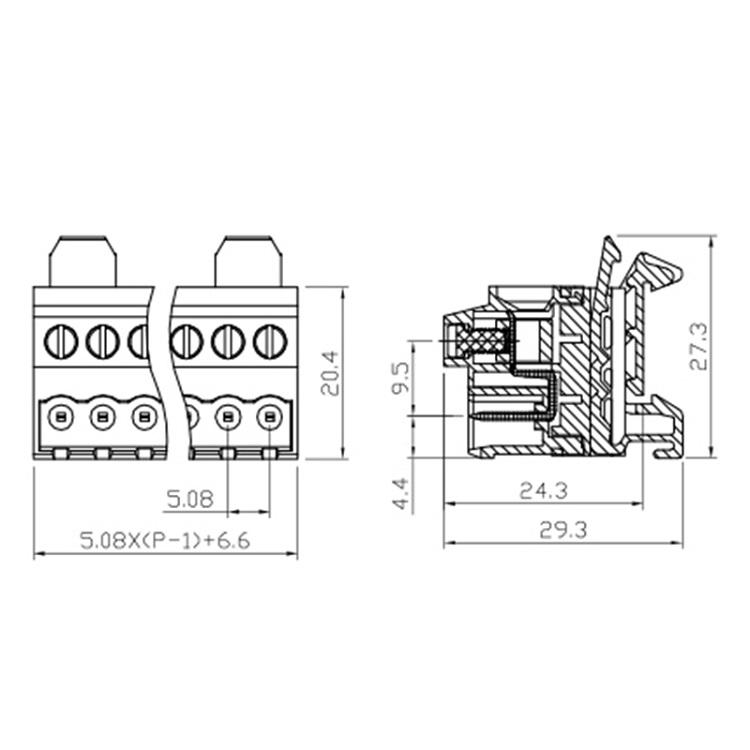

Dimensions
Advantages
☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations
Application Of Pluggable Terminal Block
1.Motion controller 2.Three-phase power meter 3.Microcomputer protection device 4.Electric equipment
5.Automation equipment 6.Security equipment 7.Internet of things equipment
Package Of Pluggable Terminal Block
We choose the high quality and safe packaging material to make sure your order won't be damaged during delivery.
These trade terms are acceptable:EXW,FOB,CFR,CIF.
