Brand：HOMNECKS
Featuring an impressive temperature range of -40℃ to +105℃, these connectors are built to thrive in varying climatic conditions. Whether it's freezing cold or sweltering heat, these connectors will remain steadfast, making them the perfect solution for a wide range of applications.
Item No :
H129V-7.5Payment :
T/TProduct Origin :
ChinaColor :
green ,we can also make other color if meet moqH129V-7.5 High-Quality Terminal Block Connector
With their striking green color, our 7.5mm Pitch Bent Pin Terminal Connectors are not only visually appealing but also easily identifiable amidst a tangle of cables and wires. Seamlessly integrating into your electrical setup, these connectors provide a clear visual indicator for efficient installation and maintenance.
7.5 Terminal Block Features:
7.5mm pitch design: This terminal block connector uses a standard 7.5mm pitch, which is suitable for most electrical systems. Whether it is a home circuit or an industrial application, it can easily cope with it and perfectly match various installation requirements.
High-quality materials: We have selected particularly durable materials to ensure that each connector can work stably for a long time. No matter how much the environment changes, it can remain strong and durable, and you can use it with complete peace of mind.
Safe and reliable: This terminal block connector is designed with special attention to reliability. Each connection point is stable and safe, which can effectively avoid the trouble of poor contact or sudden power failure, ensuring that the system always operates normally.
Quick installation: Installing this connector is super easy. You don’t need extra tools. Just plug in the wires directly, which is especially time-saving and labor-saving! It is a lifesaver for professionals who need to complete projects quickly.
Multiple applications: This connector is very suitable for various electrical connection projects. Whether it is an industrial electrical system, or a home electrical, automation control, or lighting system, it can easily handle it.
Type:Screw Terminal Block
Pole:
| 2 pin terminal block | 3 pin terminal block | 4 pin terminal block | 5 pin terminal block | 6 pin terminal block | 7 pin terminal block |
| 8 pin terminal block | 9 pin terminal block | 10 pin terminal block | 11 pin terminal block | 12 pin terminal block | 13 pin terminal block |
| 14 pin terminal block | 15 pin terminal block | 16 pin terminal block | 17 pin terminal block | 18 pin terminal block | 19 pin terminal block |
| 20 pin terminal block | 21 pin terminal block | 22 pin terminal block | 23 pin terminal block | 24 pin terminal block |
Material Of Pluggable Terminal Block
| Housing | PA66, UL94V-0 |
| Screws | M3 steel Zinc plated |
| Cage | Copper alloy，Tin Plated |
| Pin header | Brass,Tin plated |
Electrical Of Pluggable Terminal Block
| Rated Voltage |
UL IEC 300V 450V |
| Rated Current | 20A 20A |
| Contact Resistance | 20mΩ(MAX) |
| Insulation Resistance | 500MΩ/DC500V |
| Withstanding Voltage | AC 2500V/1 Min |
| Wire range | 24-12AWG 4mm² |
Mechanical Of Pluggable Terminal Block
| Temp. Range | -40℃~ +105℃ |
| MAX Soldering | +250, for 5 Sec. |
| Torque | 0.8N.m （7.02 Lb.in） |
| Strip length | 6-7mm |

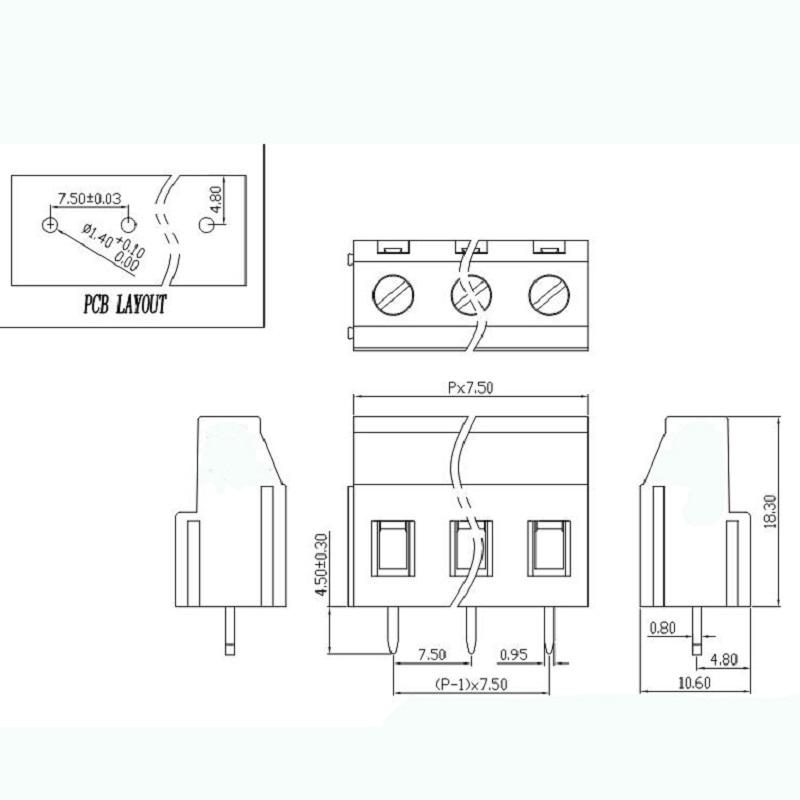

Dimensions
Advantages
☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations
Application Of Pluggable Terminal Block
1.Motion controller 2.Three-phase power meter 3.Microcomputer protection device 4.Electric equipment
5.Automation equipment 6.Security equipment 7.Internet of things equipment
Package Of Pluggable Terminal Block
We choose the high quality and safe packaging material to make sure your order won't be damaged during delivery.
These trade terms are acceptable:EXW,FOB,CFR,CIF.
