Brand：HOMNECKS
Upgrade your electronic connections today with our exceptional 10.16MM wide pitch PCB screw terminal - the gold standard in high-quality, durable electrical components. Trust in its unwavering performance and allow your business to thrive.
Item No :
H136HT-10.16Payment :
T/TProduct Origin :
ChinaColor :
green ,we can also make other color if meet moqHigh Voltage Electrical Connector Blocks
Introducing our exquisite 10.16mm pitch PCB screw-type terminal, meticulously crafted pure copper, designed to meet your high-current needs. With a rated voltage of 600V and a rated current of 65A, this terminal is built to deliver exceptional performance and reliability.
Crafted with precision, our PCB screw-type terminal offers seamless integration into your electronic projects. The 10.16mm pitch ensures optimal spacing, allowing for efficient wire connections. Its screw-type design provides secure and stable connections, ensuring the safety of your electrical components.
Product Features
This terminal block has a 10.16mm pitch, which works well for general industrial electric stuff. It makes sure everything's spaced out right, so you don't get interference and your electric connections stay solid.
It can handle high voltage, so it's good for power systems and industrial controls. It'll keep things safe, whether it's in a control panel, machine, or power grid.
Made with tough, rust-proof copper stuff, it's great at conducting electricity and lasts a long time. It will work in bad environments and stop electrical problems from happening because of heat or water.
The H136HT terminal block is easy to install. You can wire it up fast without any special tools or know-how. This saves time and money, especially if you're doing a lot of production or fixing equipment.
It's not just for power distribution; you can use it in industrial automation, building wiring, machines, and even car electronics for connections you can count on.
Type:Screw Terminal Block
Pole:
| 2 pin terminal block | 3 pin terminal block | 4 pin terminal block | 5 pin terminal block | 6 pin terminal block | 7 pin terminal block |
| 8 pin terminal block | 9 pin terminal block | 10 pin terminal block | 11 pin terminal block | 12 pin terminal block | 13 pin terminal block |
| 14 pin terminal block | 15 pin terminal block | 16 pin terminal block | 17 pin terminal block | 18 pin terminal block | 19 pin terminal block |
| 20 pin terminal block | 21 pin terminal block | 22 pin terminal block | 23 pin terminal block | 24 pin terminal block |
Material Of Pluggable Terminal Block
| Housing | PA66, UL94V-0 |
| Screws | M3 steel Zinc plated |
| Cage | Copper alloy，Tin Plated |
| Pin header | Brass,Tin plated |
Electrical Of Pluggable Terminal Block
| Rated Voltage |
UL IEC 600V 500V |
| Rated Current | 65A 65A |
| Contact Resistance | 20mΩ(MAX) |
| Insulation Resistance | 500MΩ/DC500V |
| Withstanding Voltage | AC 3000V/1 Min |
| Wire range | 26-6AWG 16mm² |
Mechanical Of Pluggable Terminal Block
| Temp. Range | -40℃~ +105℃ |
| MAX Soldering | +250, for 5 Sec. |
| Torque | 1.2Nm（10.53lb.in) |
| Strip length | 10mm |

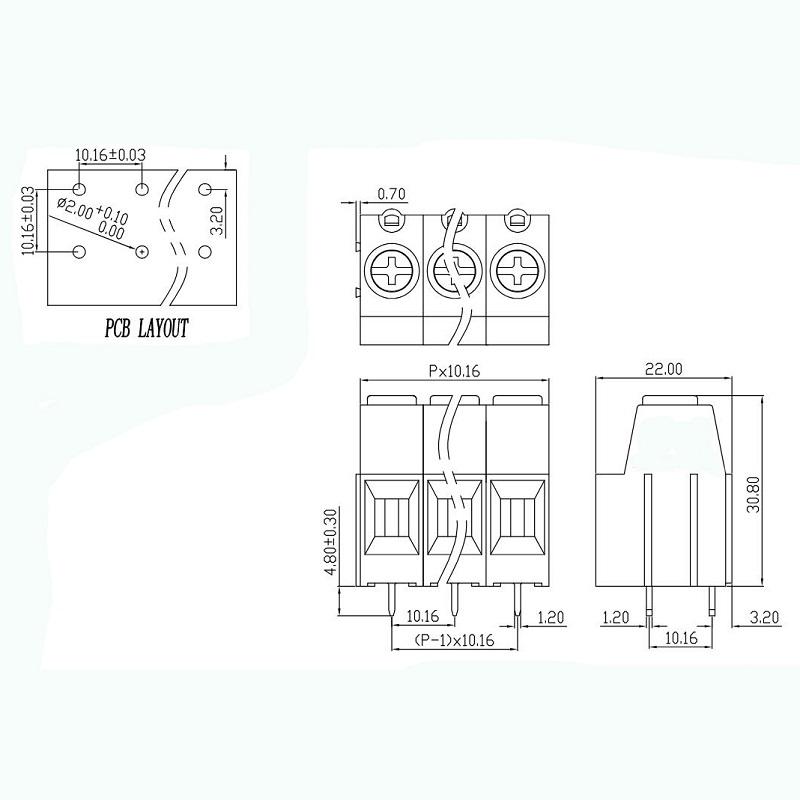

Dimensions
Advantages
☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations
Application Of Pluggable Terminal Block
1.Motion controller 2.Three-phase power meter 3.Microcomputer protection device 4.Electric equipment
5.Automation equipment 6.Security equipment 7.Internet of things equipment
Package Of Pluggable Terminal Block
We choose the high quality and safe packaging material to make sure your order won't be damaged during delivery.
These trade terms are acceptable:EXW,FOB,CFR,CIF.
