Brand：HOMNECKS
If you require connectors in different colors, it is possible to accommodate your needs; however, a minimum order quantity is required to fulfill such requests. Our team is here to assist you in personalizing your order and providing tailored solutions to meet your specific requirements.
Item No :
H7620-7.62Payment :
T/TProduct Origin :
ChinaColor :
green ,we can also make other color if meet moq7.62mm PCB Terminal Connector
Invest in our premium 7.62mm Pitch Bent Pin Terminal Connectors today and experience the epitome of electrical connectivity. Elevate your electronic projects towards excellence, reliability, and professionalism with these connectors that redefine industry standards.
Why pick this connector?
It connects well and fails less: The quality materials and careful build make each plug-in stable and dependable. This cuts down on breakdowns and repair costs.
Super flexible: It's made to fit lots of different electrical stuff and boards, which means it's good for all sorts of uses.
Fast to install, saves you time: It's quick and easy to set up, saving install and upkeep time. This lets you put more effort into other important project tasks.
Where it's used:
Home appliances: For connecting electric parts and boards.
Car electronics: To connect car circuits well.
Factory equipment: Good for connections in automatic controls.
Communication devices: Gives a steady link for communication circuits.
Type:Screw Terminal Block
Pole:
| 2 pin terminal block | 3 pin terminal block | 4 pin terminal block | 5 pin terminal block | 6 pin terminal block | 7 pin terminal block |
| 8 pin terminal block | 9 pin terminal block | 10 pin terminal block | 11 pin terminal block | 12 pin terminal block | 13 pin terminal block |
| 14 pin terminal block | 15 pin terminal block | 16 pin terminal block | 17 pin terminal block | 18 pin terminal block | 19 pin terminal block |
| 20 pin terminal block | 21 pin terminal block | 22 pin terminal block | 23 pin terminal block | 24 pin terminal block |
Material Of Pluggable Terminal Block
| Housing | PA66, UL94V-0 |
| Screws | M3 steel Zinc plated |
| Cage | Copper alloy，Tin Plated |
| Pin header | Brass,Tin plated |
Electrical Of Pluggable Terminal Block
| Rated Voltage |
UL IEC 300V 750V |
| Rated Current | 30A 41A |
| Contact Resistance | 20mΩ(MAX) |
| Insulation Resistance | 500MΩ/DC500V |
| Withstanding Voltage | AC 3000V/1 Min |
| Wire range | 26-10AWG 6mm² |
Mechanical Of Pluggable Terminal Block
| Temp. Range | -40℃~ +105℃ |
| MAX Soldering | +250, for 5 Sec. |
| Torque | 0.5N.m （4.43 Lb.in） |
| Strip length | 6-7mm |

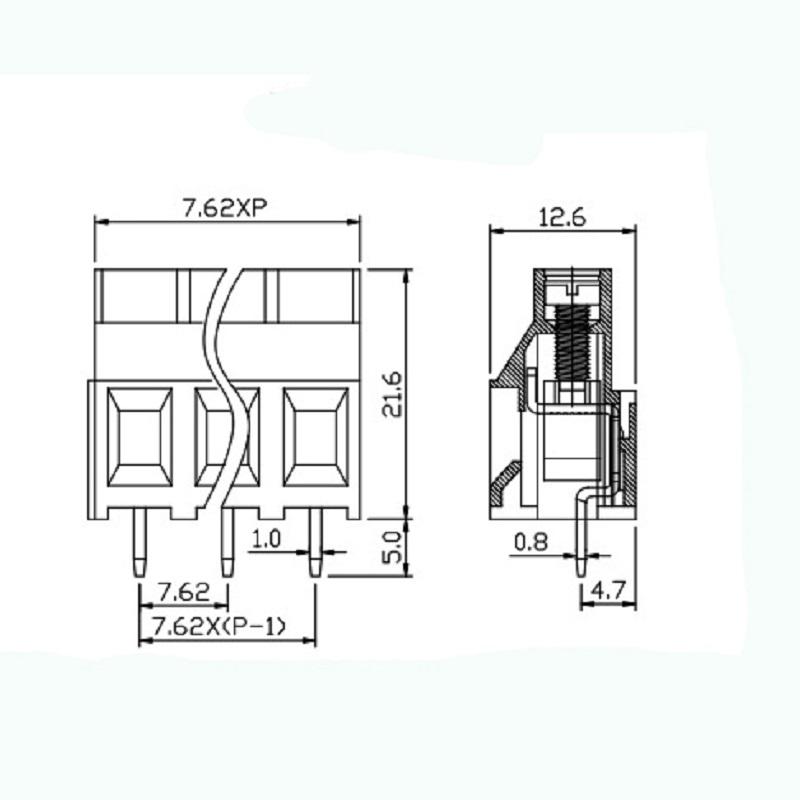

Dimensions
Advantages
☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations
Application Of Pluggable Terminal Block
1.Motion controller 2.Three-phase power meter 3.Microcomputer protection device 4.Electric equipment
5.Automation equipment 6.Security equipment 7.Internet of things equipment
Package Of Pluggable Terminal Block
We choose the high quality and safe packaging material to make sure your order won't be damaged during delivery.
These trade terms are acceptable:EXW,FOB,CFR,CIF.
