Brand：HOMNECKS
One of the standout features of these connectors is their soldering convenience. The design ensures effortless soldering, allowing for efficient and precise assembly even during demanding wave soldering processes. This feature saves you valuable time and effort, streamlining your production line without compromising on quality.
Item No :
H129V-7.62Payment :
T/TProduct Origin :
ChinaColor :
green ,we can also make other color if meet moqScrew Pcb Terminal Block
With their striking green color, our 7.5mm Pitch Bent Pin Terminal Connectors are not only visually appealing but also easily identifiable amidst a tangle of cables and wires. Seamlessly integrating into your electrical setup, these connectors provide a clear visual indicator for efficient installation and maintenance.
7.62 Screw Terminal Block Connector
7.62mm standard pitch: This connector has a pitch of 7.62mm, which is suitable for almost any electrical system and can be easily compatible with various PCB boards. Whether you are making connections in industrial electrical systems or doing DIY projects, it can handle it with ease.
High-quality materials: We use durable and high-quality materials to ensure that it remains sturdy in long-term use. It can work steadily even in environments such as heat, humidity or vibration, saving you worries.
Super easy installation: Installing this connector is so easy! Just plug the wire into the connector without any complicated tools. Whether you are a professional electrician or a DIY enthusiast who likes to do it yourself, it can help you save a lot of time.
High safety: This connector pays special attention to safety, and each connection point is firm and reliable to avoid the risk of poor contact or circuit interruption. It can remain stable for a long time to ensure that your electrical system is error-free.
Type:Screw Terminal Block
Pole:
| 2 pin terminal block | 3 pin terminal block | 4 pin terminal block | 5 pin terminal block | 6 pin terminal block | 7 pin terminal block |
| 8 pin terminal block | 9 pin terminal block | 10 pin terminal block | 11 pin terminal block | 12 pin terminal block | 13 pin terminal block |
| 14 pin terminal block | 15 pin terminal block | 16 pin terminal block | 17 pin terminal block | 18 pin terminal block | 19 pin terminal block |
| 20 pin terminal block | 21 pin terminal block | 22 pin terminal block | 23 pin terminal block | 24 pin terminal block |
Material Of Pluggable Terminal Block
| Housing | PA66, UL94V-0 |
| Screws | M3 steel Zinc plated |
| Cage | Copper alloy，Tin Plated |
| Pin header | Brass,Tin plated |
Electrical Of Pluggable Terminal Block
| Rated Voltage |
UL IEC 300V 450V |
| Rated Current | 20A 20A |
| Contact Resistance | 20mΩ(MAX) |
| Insulation Resistance | 500MΩ/DC500V |
| Withstanding Voltage | AC 2500V/1 Min |
| Wire range | 24-12AWG 4mm² |
Mechanical Of Pluggable Terminal Block
| Temp. Range | -40℃~ +105℃ |
| MAX Soldering | +250, for 5 Sec. |
| Torque | 0.8N.m （7.02 Lb.in） |
| Strip length | 6-7mm |

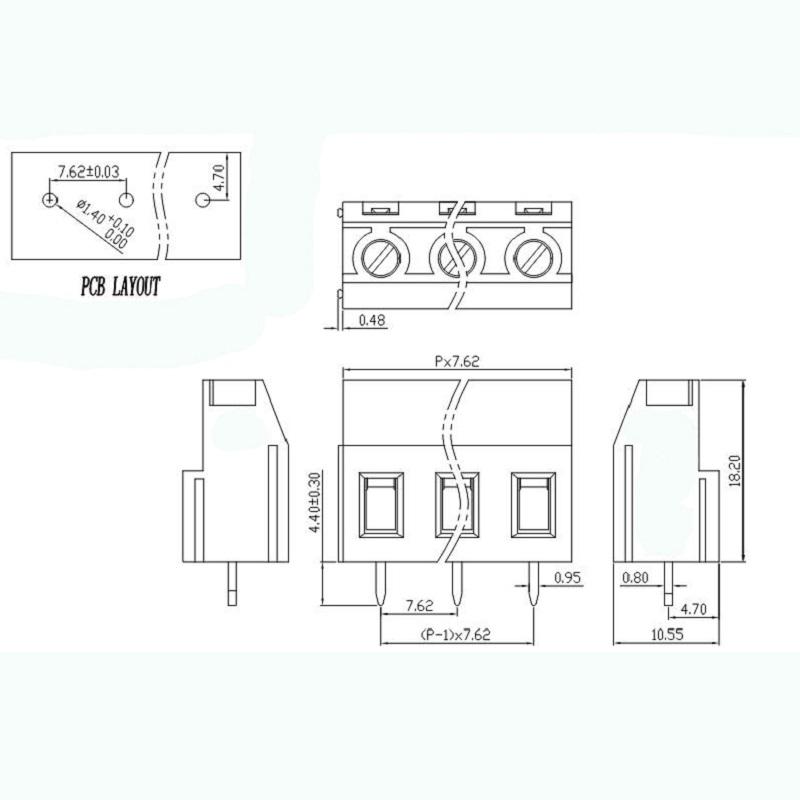

Dimensions
Advantages
☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations
Application Of Pluggable Terminal Block
1.Motion controller 2.Three-phase power meter 3.Microcomputer protection device 4.Electric equipment
5.Automation equipment 6.Security equipment 7.Internet of things equipment
Package Of Pluggable Terminal Block
We choose the high quality and safe packaging material to make sure your order won't be damaged during delivery.
These trade terms are acceptable:EXW,FOB,CFR,CIF.
Brand：HOMNECKS Featuring an impressive temperature range of -40℃ to +105℃, these connectors are built to thrive in varying climatic conditions. Whether it's freezing cold or sweltering heat, these connectors will remain steadfast, making them the perfect solution for a wide range of applications.
