Brand：HOMNECKS
Invest in our premium 9.5mm Pitch Bent Pin Terminal Connectors today and experience the epitome of electrical connectivity. Elevate your electronic projects towards excellence, reliability, and professionalism with these connectors that redefine industry standards.
Item No :
H950-9.5Payment :
T/TProduct Origin :
ChinaColor :
green ,we can also make other color if meet moq9.5mm Screw Terminal Block
9.5 PCB Screw Terminal with a wide pitch, designed specifically for your international trade needs. Perfect for connecting wires with larger diameters, this terminal boasts impressive range of features that it a go-to for professionals worldwide.
Why choose this terminal block?
Efficient and stable electrical connection: Whether it is high-frequency use or long-term current load, H950 can maintain the stability of the connection and reduce the occurrence of electrical faults.
Sturdy and durable, adaptable to various environments: Durable, corrosion-resistant and not easy to age, this terminal block can withstand large loads and maintain good performance during long-term use.
Quick installation, saving time and effort: Quick insertion and installation and connection through screw locking ensure that each wire can be firmly connected. Reduce the frequency of maintenance and replacement.
Application areas:
Industrial automation: Provides stable and reliable electrical connections and is widely used in automation control equipment.
Household appliances: Suitable for connecting circuit components inside household appliances.
Power equipment: Used for electrical connections in power systems to ensure the normal operation of equipment.
Communication equipment: Suitable for electrical connections between circuit boards to ensure the stability of communication equipment.
Type:Screw Terminal Block
Pole:
| 2 pin terminal block | 3 pin terminal block | 4 pin terminal block | 5 pin terminal block | 6 pin terminal block | 7 pin terminal block |
| 8 pin terminal block | 9 pin terminal block | 10 pin terminal block | 11 pin terminal block | 12 pin terminal block | 13 pin terminal block |
| 14 pin terminal block | 15 pin terminal block | 16 pin terminal block | 17 pin terminal block | 18 pin terminal block | 19 pin terminal block |
| 20 pin terminal block | 21 pin terminal block | 22 pin terminal block | 23 pin terminal block | 24 pin terminal block |
Material Of Pluggable Terminal Block
| Housing | PA66, UL94V-0 |
| Screws | M3 steel Zinc plated |
| Cage | Copper alloy，Tin Plated |
| Pin header | Brass,Tin plated |
Electrical Of Pluggable Terminal Block
| Rated Voltage |
UL IEC 300V 750V |
| Rated Current | 30A 41A |
| Contact Resistance | 20mΩ(MAX) |
| Insulation Resistance | 500MΩ/DC500V |
| Withstanding Voltage | AC 3000V/1 Min |
| Wire range | 26-10AWG 6mm² |
Mechanical Of Pluggable Terminal Block
| Temp. Range | -40℃~ +105℃ |
| MAX Soldering | +250, for 5 Sec. |
| Torque | 0.5N.m （4.43 Lb.in） |
| Strip length | 6-7mm |

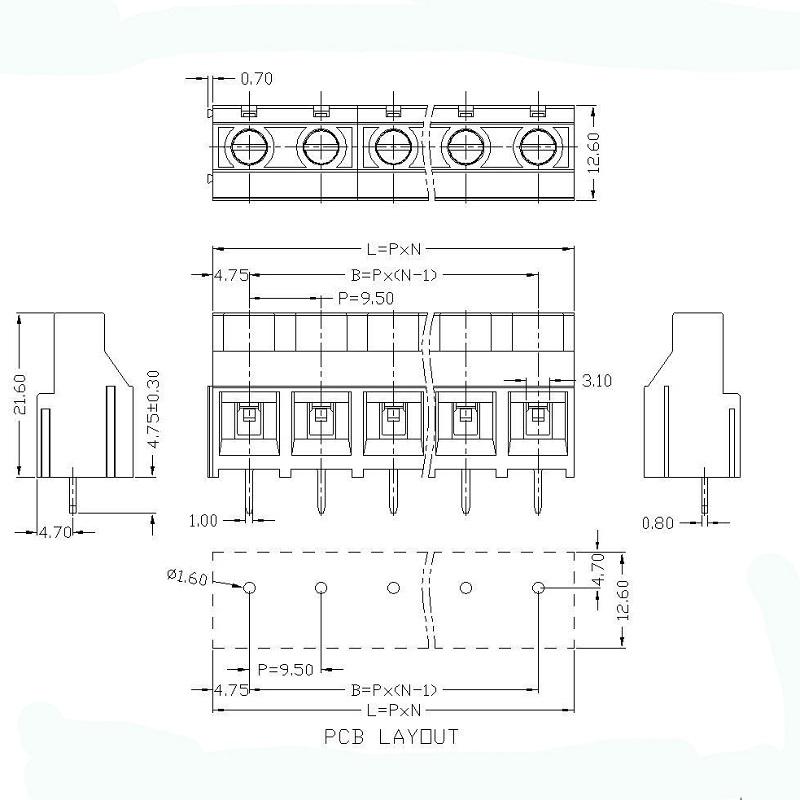

Dimensions
Advantages
☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations
Application Of Pluggable Terminal Block
1.Motion controller 2.Three-phase power meter 3.Microcomputer protection device 4.Electric equipment
5.Automation equipment 6.Security equipment 7.Internet of things equipment
Package Of Pluggable Terminal Block
We choose the high quality and safe packaging material to make sure your order won't be damaged during delivery.
These trade terms are acceptable:EXW,FOB,CFR,CIF.
